Joseph Giles - Horizontal Traditional Key Latch Lock

Model code: LA1040

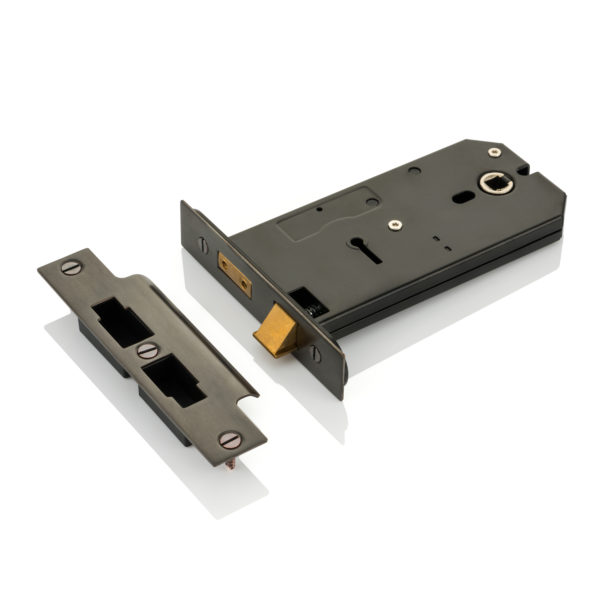

This horizontal latch lock is recessed into the door. Its latch bolt is operated by a pair of door knobs with an 8mm spindle and its deadbolt is operated by a traditional 3 lever style key. These locks are keyed to differ, meaning that each key is individual for each lock.

The minimum door thickness for these locks is 32mm and the maximum, as standard, is 54mm.

Includes:

Latch lock (The actual lock)
Forend (Plate that goes over the end of the lock)
Strike plate (Plate that is fitted to the frame)
Dust box (Small black box which is fitted into the cut out behind the strike plate, improving the overall aesthetics of the finish)
Fixing pack
2 keys

For up-to-date Dimensions & Technical Help Sheets on this item please visit the Joseph Giles UK website product page josephgiles.com/product/LA1040. You will need to create an account to login. Alternatively, contact our helpful sales consultants for assistance.

Select Model & Finish for RRP (inc. GST)

Select Option
Select Option
1. A: 38.5mm B: 102mm C: 123.5mm (LA1040.01.)
2. A: 51mm B: 127mm C: 149mm (LA1040.02.)
